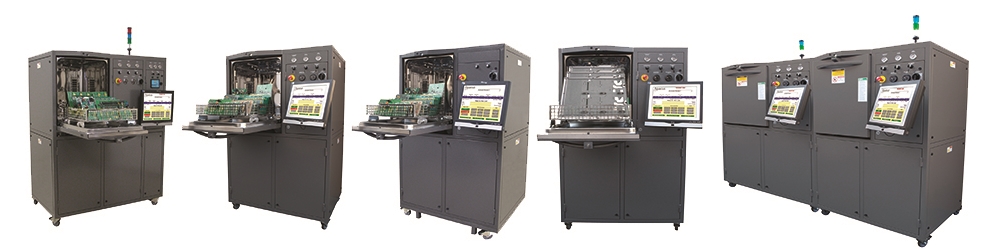

Trident Feature and Selection Chart
|
Feature |
Trident LDO |
Trident ZDO |
Trident CLO |
|
Water Soluble Flux Removal |
Yes |
Yes |
Yes |
|
No-Clean Flux Removal |
Yes |
Yes |
No |
|
Rosin Flux Removal |
Yes |
Yes |
No |
|
Closed Loop Wash |
Yes |
Yes |
Yes |
|
Closed-Loop Rinse |
No |
Yes |
Yes |
|
Max Assembly Size |
20” x 21” 508 x 533mm |
20” x 21” 508 x 533mm |
20” x 21” 508mm x 533mm” |
|
Average Cycle Time (wash – rinse – dry) |
30 min |
30 min |
20 min |
|
Max Assembly Loading 5”x5” (127mm x 127mm) |
52 single rack 104 double rack |
52 single rack 104 double rack |
52 single rack 104 double rack |
|
Max Assembly Loading 10”x10” (254mm x 254mm) |
26 single rack |
26 single rack |
26 single rack |
|
Max Assembly 20”x21” (508x533mm) |
13 single rack |
13 single rack |
13 single rack |
|
Max Noise |
66 dB |
66 dB |
66 dB |
|
Shadow Mitigation Technology |
Standard |
Standard |
Standard |
|
ESD Safe Stainless Steel Adjustable Assembly Rack |
Standard |
Standard |
Standard |
|
Programmable Real-Time Cleanliness Verification |
Standard |
Standard |
Standard |
|
Automatic Chemical Dosing and Mixing |
Standard |
Standard |
N/A |
|
Windows OS 15” Graphic Touchscreen Interface |
Standard |
Standard |
Standard |
|
Unlimited Programmable Recipes |
Standard |
Standard |
Standard |
|
Assembly Barcode Scanning Capability |
Standard |
Standard |
Standard |
|
Advanced Statistical Process Control (SPC) Data Capture |
Standard |
Standard |
Standard |
|
SQL Multi-Query SPC Search |
Standard |
Standard |
Standard |
|
Process Chamber Material |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Plumbing |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Welded Steel Frame and Panels with Baked Epoxy Finish |
Standard |
Standard |
Standard |
|
Digital and Analog Fluid Level Monitoring |
Standard |
Standard |
Standard |
